Solar2D Experimental Build for Windows Platform

Solar2D Win32 Desktop
1

Some backstory…. a few weeks ago I posted a demo showcasing tiling via shaders with a web build (check it out here). Two things stood out right away: I couldn’t believe how smooth it was running on the web versus the Simulator/Windows build, and the web build could run at 120fps matching one of my monitor’s refresh rate.

That got me curious, and I ended up in a rabbit hole trying to figure out why web builds running in browsers feel smoother than Windows build (even at 60Hz.), thus I ended up with two test branches of Solar2D.

The first is a fix for frame pacing on the Windows Simulator (which also applies to Windows builds) — I think it gets the job done, though I have a monitor with a refresh rate below 60Hz where things aren’t always perfectly smooth.

The second branch — and the focus of this post — is a feature branch that decouples rendering from logic to some extent.

I just released latest version from the second branch and looking for devs to give it a try. You can use just the Simulator, or also make Windows build with the template, both files are provided for download available here:

I also included a simple demo project covering audio, emitters, keyboard input, physics, sprite animation, timers, and transitions. The source should be available later on.

What’s new

  • Arbitrary FPS via config.lua — any positive integer is accepted as an fps target, not just 30/60/120. The engine auto-caps to your monitor’s refresh rate if the configured value exceeds it, and logs a warning when that happens.
  • Render sync — rendering can now happen at the full monitor refresh rate between logic ticks. This is not the same as vsync (which Solar2D already does) — your logic still runs at whatever rate you set via fps in config.lua, but render calls can fill in the gaps at the monitor’s native cadence.
  • Automatic monitor change detection — when you move the Solar2D window to a monitor with a different refresh rate, the engine detects it automatically and updates accordingly.

New API

  • display.actualFps — read-only. Returns the effective fps the engine is running at, which may differ from display.fps if the monitor refresh rate is lower than what was requested in config.lua.
  • display.refreshRate — returns the refresh rate of the monitor Solar2D is currently running on.
  • display.setDefault("renderSync", true/false) — enables or disables render calls at the monitor’s full refresh rate. Enabled by default.
  • display.getDefault("renderSync") — returns the current renderSync state.
  • Runtime:addEventListener("monitorChanged", fn) — fires when the window moves to a monitor with a different refresh rate. The event provides event.refreshRate and event.actualFps.

Important: if testing with this build, always use delta time where applicable.

To maintain consistent game speed across different fps configurations, always use delta time for movement and animation.

local lastTime = system.getTimer()

Runtime:addEventListener("enterFrame", function(event)
    local now = system.getTimer()
    local dt  = (now - lastTime) / 1000
    lastTime  = now
    obj.x = obj.x + (obj.speed * dt)
end)

Transitions and Timers work as expected — nothing special needed there.

If you’re using the physics engine, set the timestep to match the effective tick rate at startup:

local physics = require("physics")
physics.start()
physics.setGravity(0, 9.8)
physics.setTimeStep(1 / (display.actualFps or display.fps))

And update it when moving between monitors:

Runtime:addEventListener("monitorChanged", function(event)
    physics.setTimeStep(1 / event.actualFps)
end)

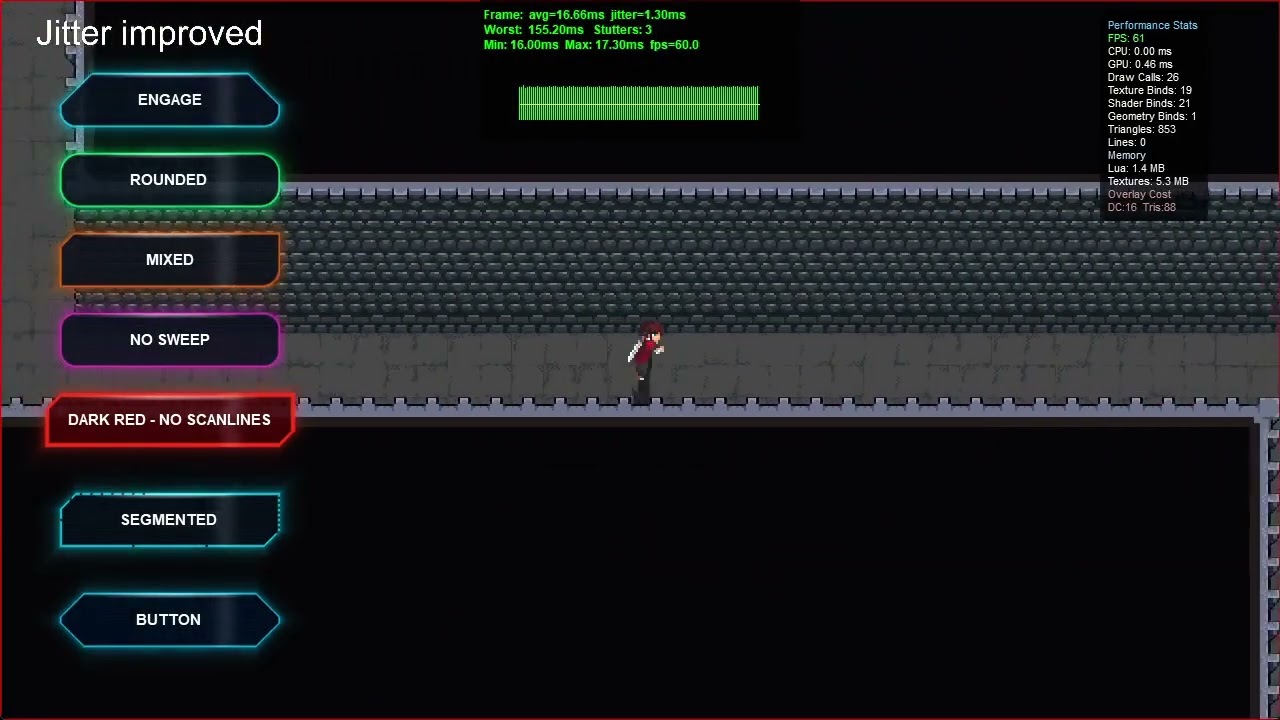

Here’s footage I had shared on Discord showcasing the difference between current production build and experimental build.

Here’s also a simple graph I created using enterFrame and timers showcasing frame pacing between experimental build (first bar) and current production build (second bar). Gaps mean pacing is off.

image1024×478 781 Bytes

The first pair matches content size to window size, scaling is even, every pixel should be filled. The second pair is downscaled, and shows the difference on frame pacing pattern/consistency.

If you have no need for this, you can try out the demo and let me know how it works (or not work) on your machine. :grinning_face:

8 Likes
2

I’ve just downloaded it to try it out later. I did a very quick test to make sure it didn’t crash immediately and it seemed fine, although Windows Defender isn’t happy about the .exe and keeps trying to block it.

3

Thanks! It’s probably because they are not signed with a trusted certificate.

Curious though, is this for the Simulator, the demo project, or both?

4

Just the simulator. I dropped the .exe and .dll into my current install folder, and then ran a quick test project. Mainly just to check it didn’t throw any errors.
Am I understanding correctly that (when using the default settings), if I don’t change my config.lua fps from 60 the logic ticks will still be at 60fps but the rendering will be at the monitor’s refresh rate?

I tried setting the config.lua fps to 144 and as expected enterFrame events happened almost twice as often, which you’ve accounted for with the comment to use deltaTime for movement etc.

5

That’s correct. I am assuming you have a 144Hz monitor. Interested on how 120fps looks/runs on it.

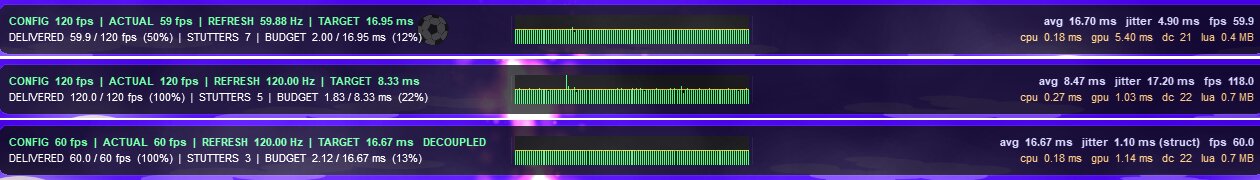

The demo in the release downloads has a module providing helpful information. Here are some samples.

image1260×180 64.8 KB

Config fps = requested/desired fps per config.lua

Actual fps = what fps is actually running at for update/logic.

Refresh = your monitor’s refresh rate

If “Decoupled” shows up it means logic and rendering are decoupled, and rendering triggers at your monitor’s refresh rate.

6

Yes, my monitor is 144Hz.

I did initially think: “but if the logic is only updating positions etc at 60fps then would the increased rendering rate even be noticeable”, but I guess shaders and some other things could animate more smoothly independently of the game logic and that would be perceivable.

7

Yes, it doesn’t make sense to render more than the logic update, and there’s no visible improvement unless we implement interpolation between frames. No idea whether we’ll get that far, but at least this would be setting that up for the future.

I’ve gone back and forth, tweaking and testing, and started to believe that somehow rendering at refresh rate, even if it’s the same frame, helps keep things smooth visually. I am now not completely sure since some of the jitter stuff I was seeing before was due to doing monitor detection in the same hot path for update and rendering.

To test further, you can set display.setDefault("renderSync", false) and see whether there’s a difference, though it’s mainly noticeable when scrolling/transitioning objects.

Also, because of my <60Hz monitor, this is what I’m currently doing in the demo:

local function updateRenderSync()
	if display.refreshRate then
		if display.refreshRate > display.fps then
			display.setDefault("renderSync", true)
		else
			display.setDefault("renderSync", false)
		end
	end
end
8

Just posted a profiler that’s also compatible with this branch.

The repo has the open source demo I use to test between Solar2D versions.

You can run this project on any Solar2D build and compare, the profiler helps to pick up on things not necessarily noticeable.

2 Likes
